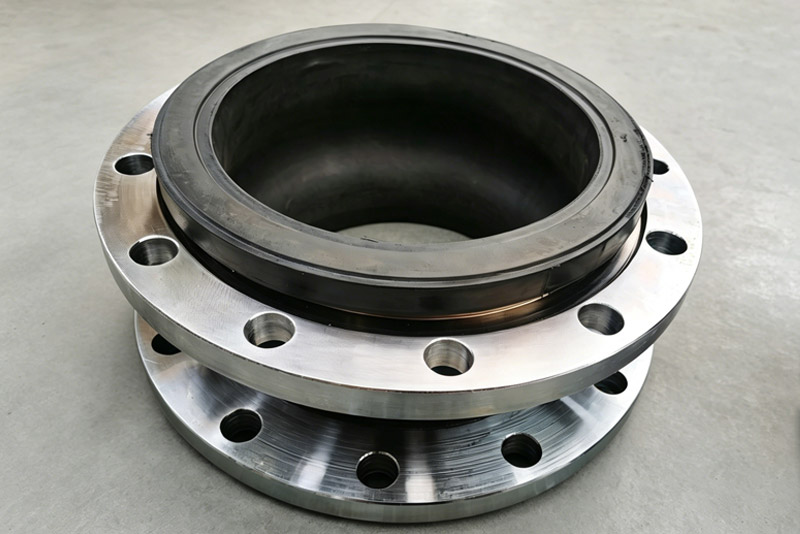

Rubber expansion joints, also known as flexible rubber expansion joints, vibration dampers, pipeline vibration dampers, and shock absorbers, are a type of pipeline expansion joint with high elasticity, high airtightness, and resistance to various media and weathering.

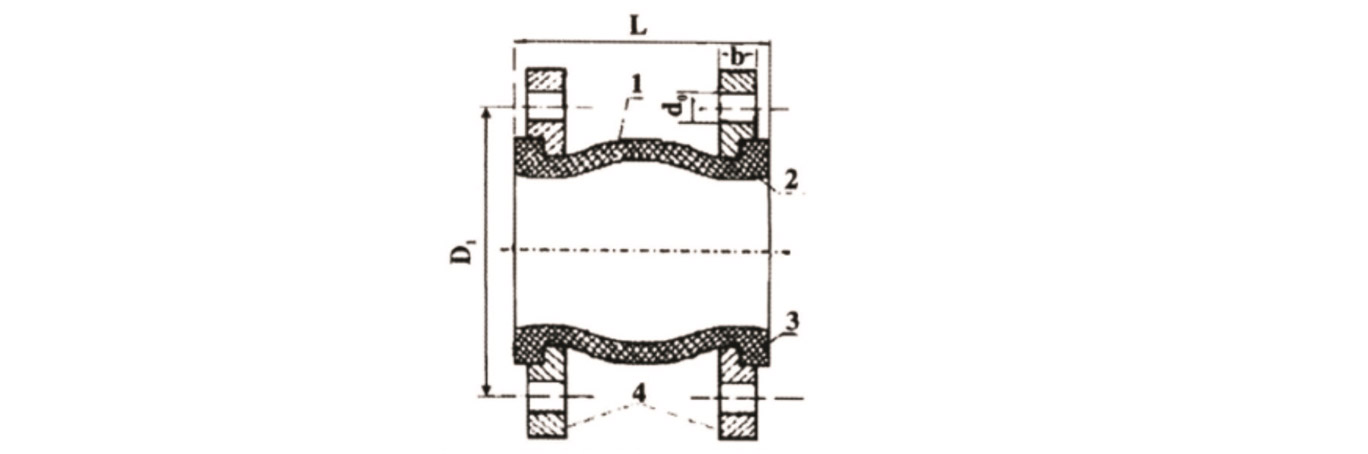

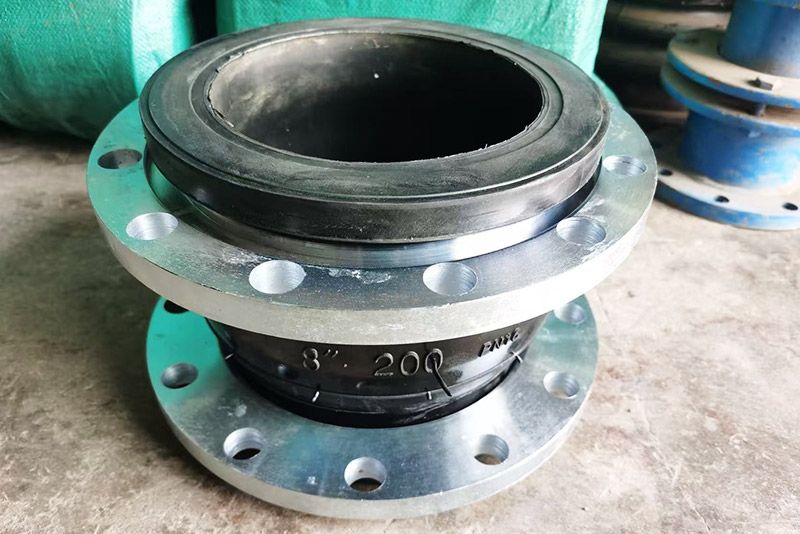

1. Rubber Sphere: Inner layer of water-resistant rubber, middle layer of multi-layer cord reinforcement, outer layer of aging-resistant rubber.
2. Steel Wire Reinforcement Layer: High-pressure models have built-in steel wire to increase compressive strength.
3. Loose Flanges at Both Ends: Made of carbon steel, allowing for free rotation and easy installation.
4. Sealing Working Surface: One-piece molded spherical surface for a tight seal.
Strong vibration damping effect, reducing pipeline noise
Pressure resistant and durable, not prone to bursting
Resistant to acids and alkalis, corrosion resistant
Simple installation, rotatable flange for easy hole alignment
Reduces pump vibration, protecting valves and pipelines
Reduces construction difficulty, facilitating later maintenance and disassembly
Relying on the elasticity of the rubber itself:
1. Absorbs the expansion and contraction displacement of the pipeline due to thermal changes.
2. Counteracts foundation settlement and pipeline misalignment.
3. Blocks pump vibration, preventing it from being transmitted to the pipeline.
4.Automatically fine-tunes the angle, reducing the probability of pipeline rupture.
1. Waterworks and residential water supply pipelines
2. Pump inlet and outlet positions
3. Sewage treatment projects
4. HVAC pipelines
5. Chemical pipelines and equipment connections
6. Locations with high pipeline vibration and prone to misalignment
| Project/Model | JGD-1 | JGD-2 | JGD-3 |
| Working pressure MPa | 1.0（10） | 1.6（16） | 2.5（25） |
| Bursting pressure MPa | 2.0（20） | 3.0（30） | 4.5（45） |
| Vacuum degree Kpa | 53.3（400） | 86.7（650） | 100（750） |
| Applicable temperature ℃ | -15℃ to +115℃; special models can reach -30℃ to +250℃. | ||
| Applicable media | Air, compressed air, water, seawater, hot water, oil, acids and alkalis | ||
| Notes: 1. Special requirements can be customized by letter or drawing. Flanges should conform to the "National General Water Supply and Drainage Standard Drawings," and others should conform to HG/T2289-92. Production range: DN15-4000. 2. DN350-600 (2) type working pressure: 1.6MPa; DN32-400 (3) type working pressure: 2.5MPa. 3. DN700-1200 (2) type working pressure: 1.0MPa; DN1400 type working pressure: 0.6MPa; DN1600-DN1800 type working pressure: 0.4MPa; flanges selected at 0.6MPa. DN2000 type working pressure: 0.25MPa; flanges selected at 0.6MPa. 4. For suspended water supply systems using products with a diameter of DN200 or larger, the pipes must have fixed supports or brackets; otherwise, the product should be equipped with an anti-pull-out device. 5. When using rubber joints, the corresponding flanges should be valve flanges or flanges conforming to GB/T9115.1 (RF). |
|||
| Nominal diameter DN | Length L (mm) | Flange thickness b (mm) | Number of bolts n | Bolt hole diameter (mm) | Bolt hole center circle diameter D1 | Axial displacement elongation (mm) | Lateral displacement (mm) | Deflection angle (α₁+α₂) ° | ||
| mm | inch | elongation | compression | |||||||
| 32 | 1 1/4 | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 | 15 |
| 40 | 1 1/2 | 95 | 18 | 4 | 18 | 110 | 6 | 10 | 9 | 15 |
| 50 | 2 | 105 | 18 | 4 | 18 | 125 | 7 | 10 | 10 | 15 |
| 65 | 2 1/2 | 115 | 20 | 4 | 18 | 145 | 7 | 13 | 11 | 15 |
| 80 | 3 | 135 | 20 | 4 | 18 | 160 | 8 | 15 | 12 | 15 |
| 100 | 4 | 150 | 22 | 8 | 18 | 180 | 10 | 19 | 13 | 15 |
| 125 | 5 | 165 | 24 | 8 | 18 | 210 | 12 | 19 | 13 | 15 |
| 150 | 6 | 180 | 24 | 8 | 23 | 240 | 12 | 20 | 14 | 15 |
| 200 | 8 | 210 | 24 | 8 | 23 | 295 | 16 | 25 | 22 | 15 |
| 250 | 10 | 230 | 26 | 12 | 23 | 350 | 16 | 25 | 22 | 15 |
| 300 | 12 | 245 | 28 | 12 | 23 | 400 | 16 | 25 | 22 | 15 |
| 350 | 14 | 255 | 28 | 16 | 23 | 460 | 16 | 25 | 22 | 15 |
| 400 | 16 | 255 | 30 | 16 | 25 | 515 | 16 | 25 | 22 | 15 |
| 450 | 18 | 255 | 30 | 20 | 25 | 565 | 16 | 25 | 22 | 15 |
| 500 | 20 | 255 | 32 | 20 | 25 | 620 | 6 | 25 | 22 | 15 |
| 600 | 24 | 260 | 36 | 20 | 30 | 725 | 6 | 25 | 22 | 15 |
| 700 | 28 | 260 | 36 | 24 | 30 | 840 | 16 | 25 | 22 | 15 |
| 800 | 32 | 260 | 38 | 24 | 34 | 950 | 16 | 25 | 22 | 15 |
| 900 | 36 | 260 | 42 | 28 | 34 | 1050 | 6 | 25 | 22 | 15 |
| 1000 | 40 | 260 | 44 | 28 | 34 | 1160 | 18 | 26 | 24 | 15 |
| 1200 | 48 | 260 | 48 | 32 | 41 | 1380 | 18 | 26 | 24 | 15 |
| 1400 | 56 | 350 | 44 | 36 | 34 | 1560 | 20 | 28 | 26 | 15 |
| 1600 | 64 | 350 | 46 | 40 | 34 | 1760 | 25 | 35 | 30 | 10 |
