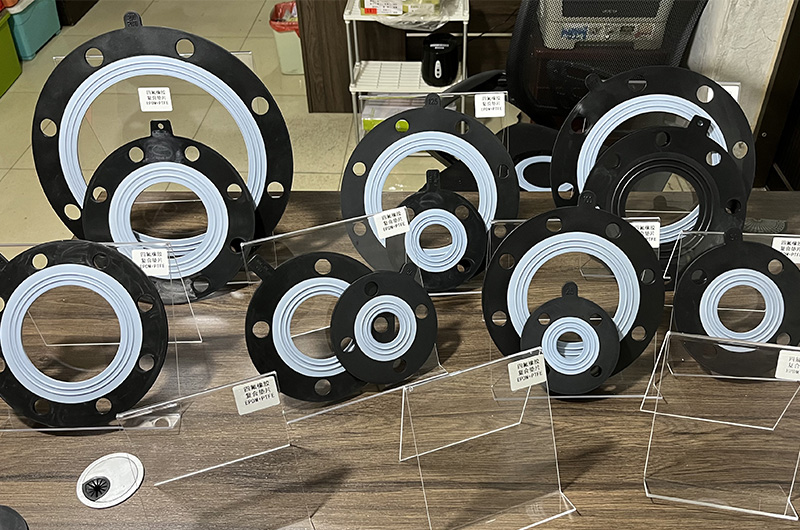

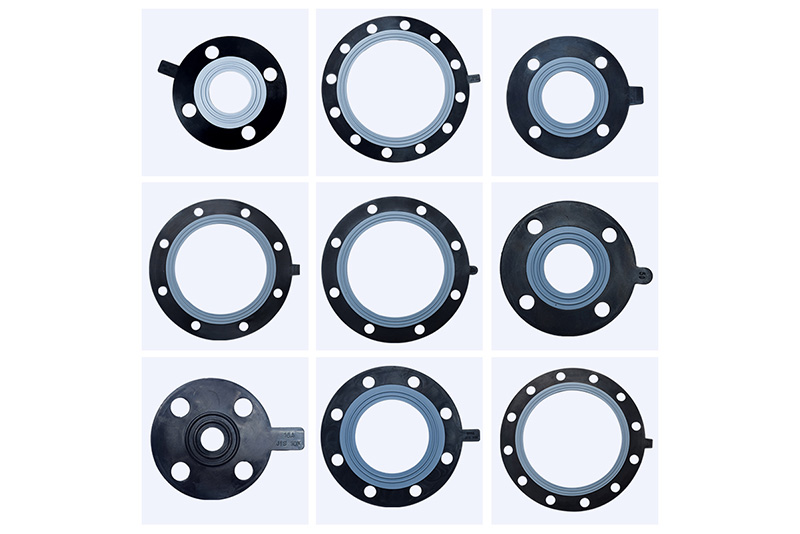

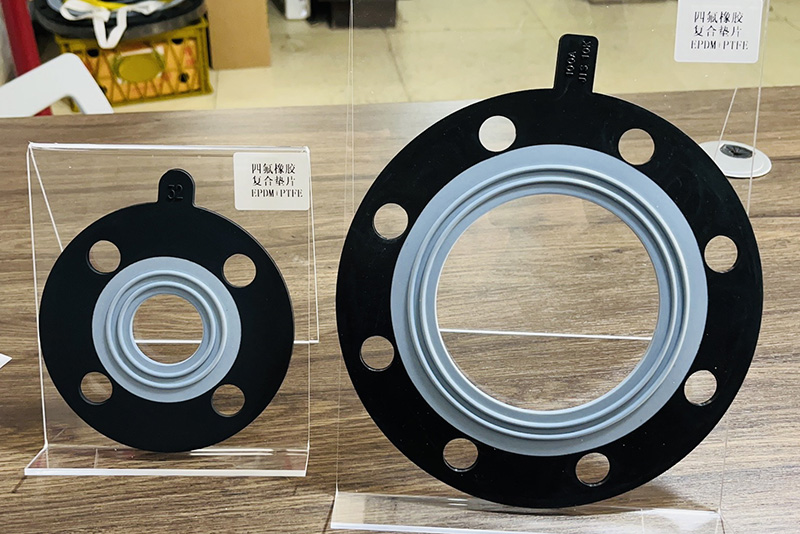

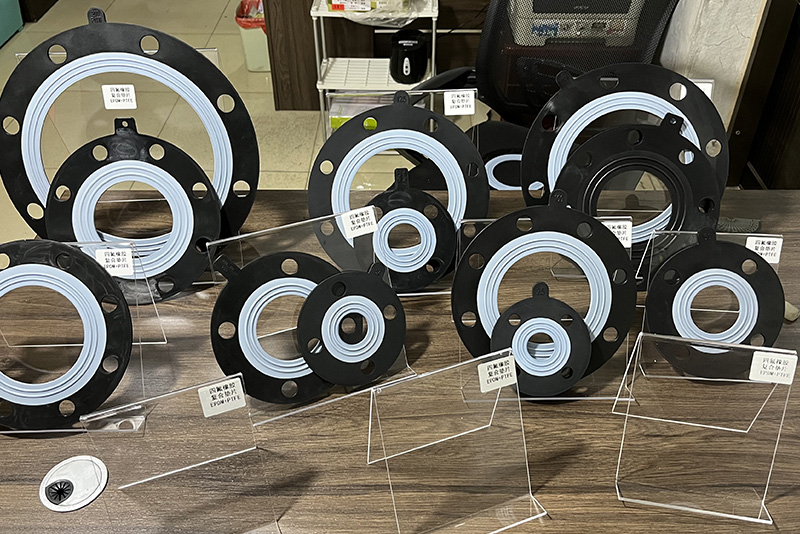

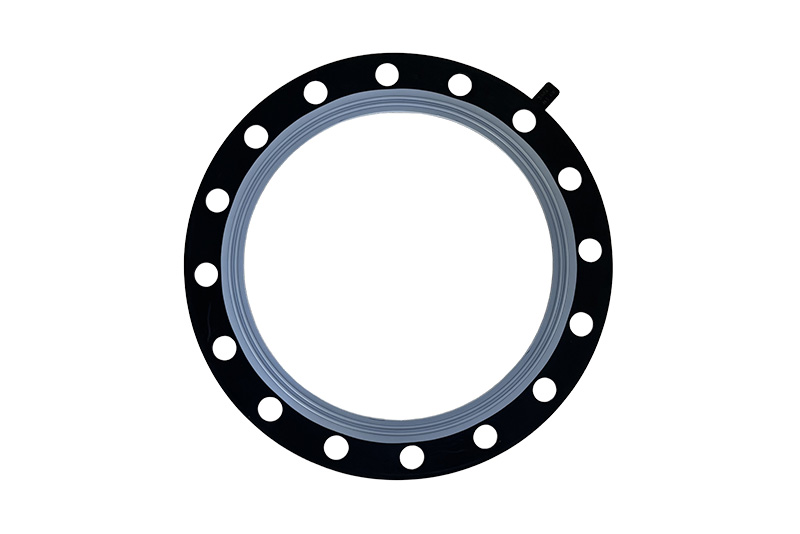

Outer layer: PTFE (polytetrafluoroethylene) film; inner layer: EPDM rubber; high-temperature pressing and integral molding.
Outer layer: PTFE (polytetrafluoroethylene) film; inner layer: EPDM rubber; high-temperature pressing and integral molding.
Corrosion Resistance: PTFE isolates corrosive media, superior to ordinary rubber gaskets.
Excellent Sealing Performance: The rubber has sufficient elasticity, adaptable to flange irregularities and slight unevenness.
Non-stick to Flanges: Leaves no adhesive residue during disassembly and assembly; not easily stuck or torn.
Aging Resistance and Permeability Resistance; specially designed for leak prevention in acid and alkali chemical pipelines.
Chemical, electroplating, pharmaceutical, petroleum, wastewater treatment, corrosion-resistant equipment, acid and alkali valve flange sealing.
| Specification | Inner Diameter | Outer Diameter | Center Distance | Bore Diameter | Number of Holes | Composite Layer Outer Diameter |
| DN 15 | 18 | 95 | 65 | ø14 | 4 | 48 |
| DN 20 | 25 | 105 | 75 | ø14 | 4 | 58 |
| DN 25 | 32 | 115 | 85 | ø14 | 4 | 68 |
| DN 32 | 38 | 135 | 100 | ø18 | 4 | 80 |
| DN 40 | 45 | 145 | 110 | ø18 | 4 | 88 |
| DN 50 | 57 | 160 | 125 | ø18 | 4 | 103 |
| DN 65 | 76 | 180 | 145 | ø18 | 4 | 123 |
| DN 80 | 89 | 195 | 160 | ø18 | 8 | 139 |
| DN 100 | 108 | 215 | 180 | ø18 | 8 | 158 |
| DN 125 | 133 | 245 | 210 | ø18 | 8 | 188 |
| DN 150 | 159 | 280 | 240 | ø23 | 8 | 213 |
| DN 200 | 219 | 335 | 295 | ø23 | 8 | 271 |
| DN 250 | 273 | 390 | 350 | ø23 | 12 | 328 |
| DN 300 | 325 | 440 | 400 | ø23 | 12 | 379 |
